Quarry Stone Cutting Machine

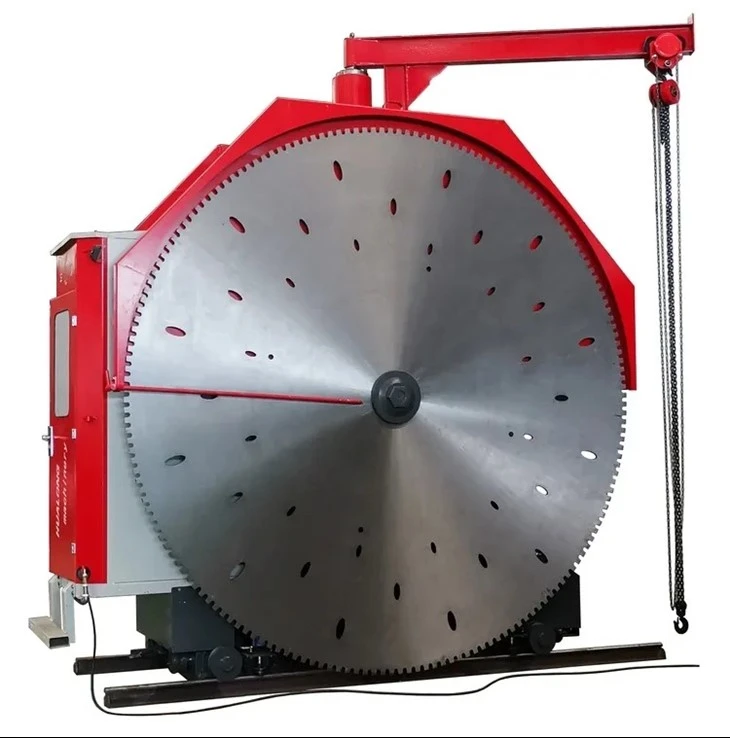

2QYKZ Permanent Magnet Mine Block Stone Cutter is a stone cutting machine that can walk on guide rails, equipped with double-blade saws or single-blade saws, and uses diamond circular saw blades as cutting tools. On relatively flat mine working surfaces, 2QYKZ can cut stones into strips longitudinally. The difference between the double-blade saw and the single-blade saw is that the single-blade saw only cuts one kerf after sawing and walking, and the double-blade saw can cut two kerfs at one time, and the cutting efficiency is twice as high as that of the single saw blade. 2QYKZ also uses a permanent magnet motor as the main motor. The characteristic of the permanent magnet motor is that it can reduce the loss of electric energy, reduce the calorific value of the motor, save energy consumption and prolong the service time of the machine.

                                                                                                                                      Main Feature

 Improve

cutting

efficiency:

1:Adopt PLC digital control and advanced core program algorithm, configure permanent magnet motor, improve cutting power, power and utilization rat



2:All processing parameters can be adjusted at will to adapt to the parameters of the best cutting position of the cutter head when cutting stone with different diameter saw blades, which improves the cutting efficiency.

Intelligent control during processing:

1:The system adopts an intelligent control system, which can realize self-adaptive cutting of stone and adapt to the cutting of stone with different characteristics

2:The intelligent control system can monitor the parameters of each transmission power in real time to improve the safety and stability of the equipment. In the event of a mechanical accident, it can be shut down immediately in a very short period of time to protect the equipment transmission system from damage and improve the safety of workers in the process of cutting stone.

Why choose Hualong stone mining machine?



01

Quality Assurance

--- Made with 25 years+ expertise and patents.
--- Strictly conforming to ISO9001:2105 quality management system.

02

On-purchase Service

--- Many machines available for choice. Customization available
--- Experienced techs for all your questions.

03

After-sales service

--- Parts & Accessories Quick supply for needs,Troubleshooting by phone, e-mail, or WhatsApp/Wechat
--- Installation and operation training for any machine. Qualified and experienced technicians available to overseas

Detail image

4 Shafts Drive Transission

No need triangle belt. The through-drive make the double blades run more smooth,more steady and more efficiently.

Advantage of Blade with Cut hole design

1) Reduce dead weight, reduce load, reduce power loss by about 40%.
2) Both convenient with cooling water into the joint, enhance the cooling effect of the saw blade deformation, and better will be
the joint sand discharge, but also can release the stress generated in the use, more resistant to deformation, longer life.

Power Connection & Operation Panel

Brand: Siemens, Sunye, Sinee, Rmspo
Original: China
Quality certificated by CE

Frequency Converter regulates motor speed change according to hardness of materials cutted,improving productivity much more.

Main Motors

Name: Permanent Magnet motor
Brand: CETL
Efficiency: 96%
Original: China

Domestic famous engines, 66 kw, high rated speed at 11000 rpm, wide range of speed control and high reliability.

Touch Screen (Optional)

Touch screen with upgraded function which can adjust cutting speed automatically and steadly. It reduces mechanical impact load and wear, stablize saw cutting, and improves mining efficiency.

Customers' Spot

FAQ

1. Can you introduce Hualong Stone Machinery Company?

Hualong Stone Machinery Co., Ltd. is the top ten stone cutting machine manufacturer with ISO certification, CE certification since 1997.

Hualong's main products are stone mining machinery, plate cutting machines, plate polishing machines, etc. In the past ten years, Hualong products have occupied a certain position in the national market and even in foreign markets. Hualong Stone Machinery Co., Ltd. has now developed into a national high-tech enterprise integrating R&D, design, production, sales and service.

2. How does Hualong control the quality of products?

Hualong company has experienced QC. The quality of each machine will be strictly checked before leaving the factory.

If you have special requirements, we will send you the inspection video of the relevant machine quality for your viewing.

3. Can you provide the specific delivery time?

I'm sorry that I can't provide specific details. This depends on the quantity of the order, whether it is a customized product, etc. Generally, the delivery is arranged within one month of receiving the payment.

4. How long is the warranty period?

All machines produced by Hualong have a one-year warranty.

5. Is there a perfect after-sales service?

Hualong has a professional business team that will reply to your questions within 24 hours and provide technical support at any time. Any problem can be solved by contacting us.
