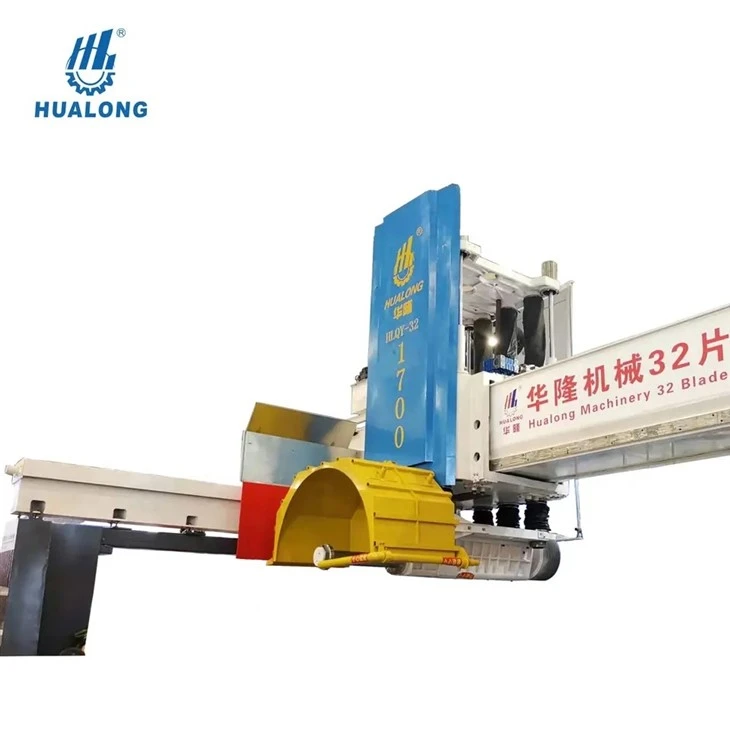

Multi Blade Granite Cutting Machine

HLYQ-32-1700 multi-blade stone cutting machine is an ideal equipment that can cut relatively large granite and marble blocks into plates. The overall frame of HLYQ-32-1700 is constructed of high hardness, super heavy iron. The overall structure is very stable. When the saw blade cuts the block, the cutter head produces a lot of pressure, and this pressure will be transmitted to the frame, and the overall frame will not vibrate, bend, deform, etc. due to this pressure. The stability is very good, which can ensure the accuracy of the saw blade when cutting blocks. For example, the smooth cutting surface reduces the cost of polishing the slab in the later stage.

The lifting system of the main shaft is driven by a hydraulic cylinder, and 6 round steel columns are used as guide rails. One is to ensure that the saw blade can be lifted and lowered quickly after the block cutting is completed. The second is that it can ensure the smooth movement of the knife rest and the linear cutting of the saw blade.

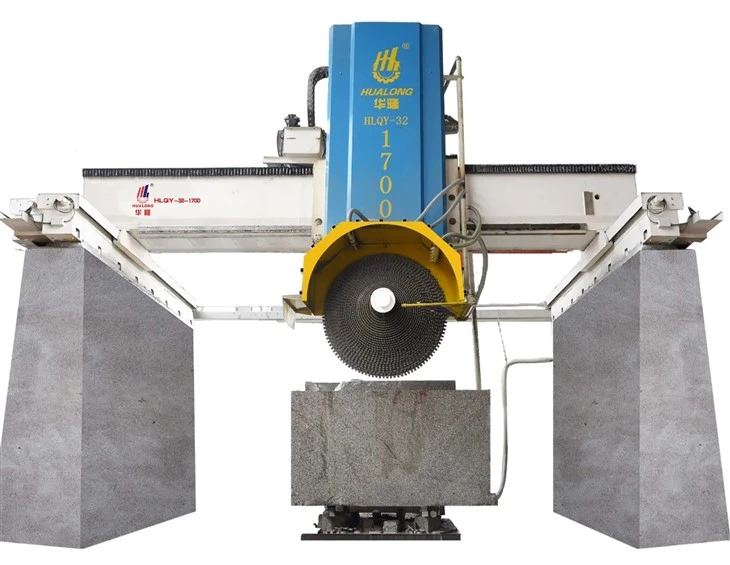

HLYQ-32-1700 stone bridge cutting machine can be installed with 32 saw blades at most. The maximum diameter of the saw blade can reach 1700MM, the maximum cutting length is 5460MM, and the maximum cutting width is 2400MM. The positioning of the saw blade is controlled by PLC system. The PLC control system is composed of frequency converter and encoder. Through the PLC system control, the block can be automatically cut to the required thickness during the block cutting process.

The design of the electric control cabinet is simple and concise, and the operation is very convenient. Generally, the electric control cabinet is installed a few meters away from the cutting machine, which can ensure the safety of the operator. All electrical components are installed in the control cabinet, which can prevent dust and water. As an ideal equipment for a block cutting machine, Hualong has produced hundreds of units for domestic and foreign customers. Hualong company has sufficient inventory, as long as it is sold, it can ship it for you immediately.

Techical data:

Main Features:

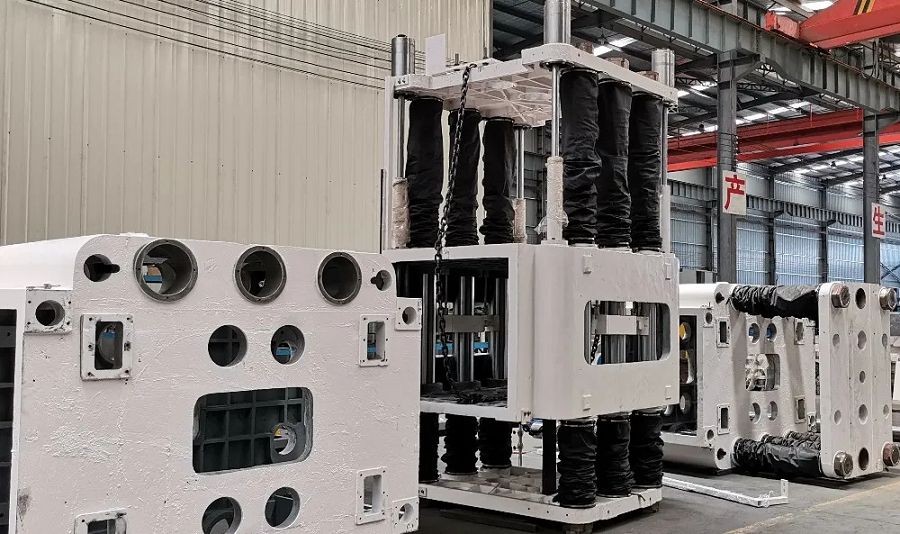

1) Adopts 6 pillars for spindle sliding, which ensure the structure of the machine is steady and the lifting is stable.

2) Super large crossbeam that weighs 14.5t above is used, which make the machine run firm and stable.

3) Crossbeam and carling adopt Taiwan's Hiwin linear guide to move, which ensure high precision of cutting and long life.

4) Siemens electronic control system is equipped for good stability and high automation performance.

CUSTOMERS' SPOT：

abouts us:

At Hualong Stone Machinery Co., Ltd., we are committed to serving our clients with integrity and professionalism. We believe that customer satisfaction is our priority, and we strive to meet their needs and exceed their expectations. Our team is dedicated to providing excellent customer service and support before, during, and after each sale. Our products are widely used in the construction and decoration industries, especially in the processing of marble, granite, and other natural stones. They are highly efficient, durable, and easy to operate, making them a valuable asset for any business. We also offer customized solutions for clients with specific needs or requirements.

As a responsible company, we place great emphasis on environmental protection and sustainability. We have implemented green production practices and use energy-efficient machinery and equipment. We take our social responsibility seriously and contribute to local communities through various initiatives.

Hualong Stone Machinery Co., Ltd. is a reputable and reliable manufacturer and supplier of stone processing machinery and equipment. We are committed to providing our clients with high-quality and cost-effective solutions to their needs. Our focus on excellent customer service, environmental protection, and social responsibility sets us apart from others in the industry. We are proud of our achievements and look forward to serving our clients for many years to come.
